Handy Universal tester for checking electrical appliance
Leakage Current Tester (AC/DC)
Specifications
Ranges | DC current - 0.1, 1. 10mA, AC current - 0.1, 1, 10mA, (DC + AC) current - 0.1, 1, 10mA, AC Voltage - 150, 300V (50 and 60 Hz) |
---|---|
Accuracy | ±2.5% of full scale value on current and voltage range |
Input Impedance | Current range: 1kΩ 1.5kΩ , and 2kΩ Voltage range; More than 100kΩ |
Frequency Range | 20 Hz to 5 kHz |
Power Source | Two 9V dry cells (JIS C8501 Type 006P or NEDA 6F22), Continuous Operating Time; Approx. 290 hours |
Overload Protection | Up to 30mA AC for one minute will not damage instrument oh current ranges |
Temperature Influence | ±0.2% of rated value/°C against temperature variation of 20± 10°C |
Insulation Resistance | More than 20 MΩ at 500 V DC between terminals and case |
Dielectric Strength | 1500V AC 50Hz for one minute between electrical circuit and case |
Dimensions | Approx. 190 x 124 x 90 mm (7.48 x 4.88 x 3.54") not including handle |
Weight | Approx. 1.0 kg (2.2 lbs) |
Accessories1 | Carrying Case (322400) 1 pc Carrying Case (B9646BU) 1 pc Instruction Manual 1 copy Test Lead (289803) 1 pc. Test Lead (B9646CM) 1 pc. |

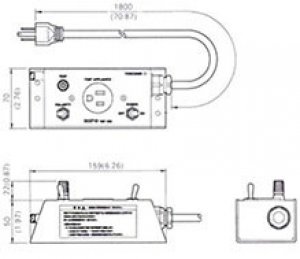

Optional Accessories | 322710 Text Box |
1 Accessories Supplied at No Extra Cost
Features
- Three input resistance ranges - 1,1.5 and 2 kΩ
- Four functions - AC current, DC current. DC + AC current and AC voltage measurements
- ± 2.5% full scale accuracy
- 100µA full scale value
- Shockproof indicator using taut band movement
- Built-in overload protection circuit
- Handy and easy to carry
- Shielded case, resistant to high-frequency fields
Examples of Application Areas
- Electrothermal appliances
Room heating (electric stove), cooking (toaster), hair-dressing (electric curling iron, hair dryer and curlers). - Motor operated appliances
electric fan, floor polisher, washing machine, electrical pump, refrigerator, electric drill, vending machine, lawn mower and electrical toys. - Light source appliances
Duplicator, projector, photographic enlarger, and electrical disinfector. - Electronic appliances
TV receiver, microwave ranges, and high-frequency welding machine. - Other appliances
Burglar alarm, medical and dental equipment, noise suppressor, and portable generator.
