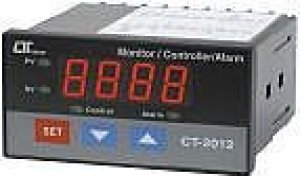

LUTRON CT-2012 4-20 mA Controller/Alarm/Indicator

Category: NEW PRODUCTS 2011

Description: 4-20 mA Controller/Alarm/Indicator
Model : CT-2012
* Input : 4-20 mA DC, linear.
* User can default the desired display value between -1999 to 9999 (decimal point can be selected
 to DP1, DP2, DP3) and all the preset data will be saved into the memory circuit permanently.
* When CT-2012 cooperate LUTRON's 4 to 20 mA transmitters, whole system will become the high
 performance Controller/Alarm/Indicator for following measuring functions : Humidity, Light, pH,
 Dissolved Oxygen, Conductivity, Vibration, Pressure, Sound, Temperature, RPM, Hz, Load
 cell (Weight, Force), Potential (Angle, Level). ACV, ACA, DCV, DCA, WATT....
* Control output : 2 points (COM, NO).
* Alarm output : 2 points (COM, NO).
* DC 24V power supply output.
* RS232/USB computer interface.
* Power : 90 ACV to 260 ACV, 50/60 Hz.
* DIN size : 96 x 48 mm. Depth : 107 mm.
