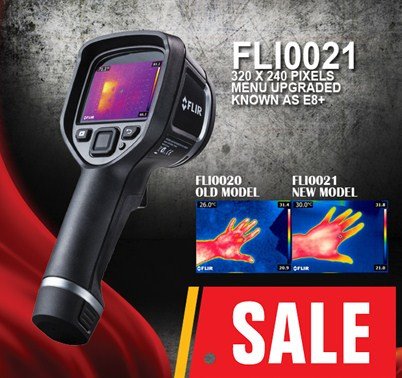

FLI0021-E4+ (ALSO E8+,E60 LENS) 320X240 PIXELS THERMAL CAMERA
https://www.youtube.com/watch?v=nbkGM0BwfPs
Specification |
|
IR Pixel Resolution |
76,800 (320 x 240) |
Thermal Sensitivity |
<0.06°C |
Frame Rate |
9Hz |
Field of View |
45° x 34° |
Focus |
Focus free |
Detector |
Uncooled Microbolometer |
Screen |
3.0 inch Screen |
Analysis Specifications |
|
Image Modes |
IR image, visual image, MSX, picture-in-picture, thumbnail gallery |
Multi Spectral Dynamic Imaging (MSX) |
IR image with enhanced detail presentation |
Picture-in-Picture |
IR area on visual image |
Temperature Range |
-4 to 482°F (-20 to 250°C) |
Accuracy |
±2% or 2°C |
Measurement Modes |
3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below) |
Alarm |
Blue below or red above set temperature |
Emissivity Correction |
Variable from 0.1 to 1.0 |
Auto Hot/Cold Detection |
Auto min/max markers within area |
Set-Up Specifications |
|
Color Palettes |
Iron, Rainbow, and Gray |
Set-up Commands |
Local adaptation of units, language, date and time formats |
Image Storage Specifications |
|
Storage Capacity |
Internal memory store at least 500 sets of images |
Storage Mode |
Simultaneous storage of images in IR, visual and MSX |
File Formats |
Standard JPEG, 14-bit measurement data included |
General Specifications |
|
Battery Type |
Swappable Li-ion Battery |
Battery Life |
4 Hours Per Charge |
Drop |
2 meter / 6.6 ft |
Weight |
1.27 lbs (0.575 kg) |
Warranty |
2 Year Parts & Labor |
