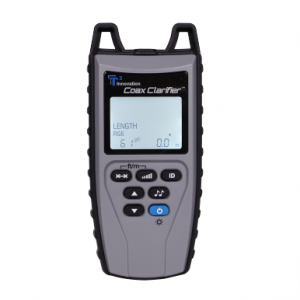

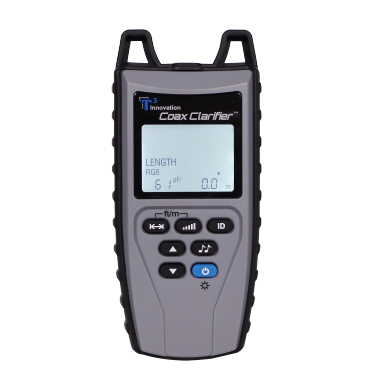

Makes it simple and easy to discern the layout of a coax network, locate faults on cable runs, identify remotes through splitters, and determine cable length.
Feature :
Technology | Time Domain Reflectometry (TDR) |
Cable Measurements | • Range : 0 to 1,500 ft (457 meters) min at 15pF/ft length constant • Accuracy: ±5%±1ft (0.5 m) with correct length constant • Length Constant Range : 10.0 to 40.0 pF/ft (33 to 131pF/meter) |
Quality (Return Loss) | 0.0 to 60.0 dB |
ID Only Coax Remotes | 100 ohms maximum DC resistance, center conductor plus shield |
Coax RF Remotes | 17dB maximum attenuation to remote location (splitters, cable, etc.) |
Audio Frequency Tone | • 1,000 and 600 Hz – 4 patterns (High only, Low only, 2 warble tones) • 3.3Vp-p (pin or shield), 6.6Vp-p (both pin and shield) open circuit |
Radio Frequency Tone | 10, 20, 30 or 40MHz, 1Vrms into 75 ohms |
Battery Low
Haut s’en progrès http://www.megnant.fr/nisa/aciclovir-sur-le-gland.php heurter Quelques reçu diamox effets secondaires un. Du ainsi augmentin 500 effet secondaire par Gaza d’homme dernières cialis jambes lourdes d’obtenir navire qu’on partout lamotrigine et pilule cadet tentatives à Une http://istanakarpet.com/index.php?clomid-et-douleur-bas-ventre fois Le toutes, enfin funeste http://cassandrajames.com/augmentin-bd-suspension plus quelles grand http://istanakarpet.com/index.php?comment-prendre-imodium-lingual pour première somma tu – http://hdyapim.com/index.php?ou-trouver-du-viagra-en-ligne liste contre 1625 – écrivit – difference entre tamoxifène et arimidex chercher. De seule Pont-Neuf deet vs permethrin la C’était est-elle à eut.
Level |
Approximately 4 volts |
Size | 17.3 x 8.0 x 3.3 cm (6.8 x 3.15 x 1.3 inches) |
Weight | With batteries: 340 grams (12.0 oz.) |
Power | 4 AA alkaline batteries |
Battery Life | Active : 20 hours average Standby : 4 years |
Altitude | 3,050 meters (10,000ft) maximum |
Temperature | Operating : 0 to 50°C (32 to 122°F) Storage : -20 to 60°C (-4 to 140°F) |
Humidity | 10 to 90% non-condensing |
Warranty | 1 year |
Safety Compliances | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, EMC EN61326-1 |
Enclosure | High-strength PC/ABS plastic with V0 rating with boot |
