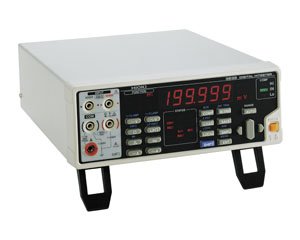

Hioki Digital Hitester 3239, 3239-01

4-Terminal Measurement Digital Multimeter with ±0.01% DCV Accuracy for High Precision Bench Testing

Hioki benchtop digital multimeters are high precision 5-1/2 digit meters that sample 300 times/second. The 3239 Series measure using the 4-terminal method, and come with a comparator function that is especially useful for production lines.

• 3239 (Built-in RS-232C interface)
• 3239-01 (Built-in RS-232C & GP-IB interface)

Note: 4-terminal measurement probes for resistance measurement are not included. Purchase the probes appropriate for your application separately.

Multi functional and high precision model, with 4-terminal resistance measurement function
• High-speed 3.3msec comparator for production line use
• Comparator function with open-collector output, beep sound, or LED display
• Built in RS-232C interface and External control I/O, or added GP-IB interface (-01 model)

Basic specifications (Accuracy guaranteed for 1 year, Basic accuracy when sampling rate is “Slow”)

* Regarding DMM accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC voltage 199.999 mV to 1000.00 V, 5 ranges, Basic accuracy: ±0.01% rdg. ±2 dgt.
AC voltage 1999.99 mV to 750.00 V, 4 ranges, Frequency characteristics: 10 Hz to 300 kHz, Basic accuracy: ±0.1% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)
DC current 199.999 mA/1999.99 mA, 2 ranges, Basic accuracy: ±0.1% rdg. ±6 dgt.
AC current 199.999 mA/1999.99 mA, 2 ranges, Frequency characteristics: 10 Hz to 30 kHz, Basic accuracy: ±0.3% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)
Resistance (2-terminals) 199.999 Ω - 100.000 MΩ, 7 ranges, Basic accuracy: ±0.02% rdg. ±2 dgt.
Low-power resistance (2-terminals) 1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.02% rdg. ±6 dgt.
Resistance (4-terminals) 199.999 Ω - 1999.99 kΩ, 5 ranges, Basic accuracy: ±0.02% rdg. ±2 dgt.
Low-power resistance (4-terminals) 1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.02% rdg. ±6 dgt.
Hz (Frequency) 99.9999 Hz - 300.000 kHz, 5 ranges, Accuracy: ±0.015% rdg. ±2 dgt., Attenuator: 2 V to 700 V, 4 ranges (Input sensitivity: 10 % of range)
Continuity test Beep sound 50.00 Ω or less at 1999.99 Ω range, Testing current 100 μA
Diode test With 1999.99 mV range, Testing current 1 mA
Other functions Comparator, Save/Load of settings, Printer output, Current measurement with clamp-on probes and scaling, External control I/O
Display Digital LED, max. 199999 digits
Sampling rate 300 times/s (Fast), 8 to 9 times/s (Medium), 1 time/s (Slow)
Power supply 100/ 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 265 mm (10.43 in) D, 2.6 kg (91.7 oz)
Supplied accessories Test Lead L9170-10 × 1, Instruction manual × 1, Power cord × 1, Spare fuse each 1
