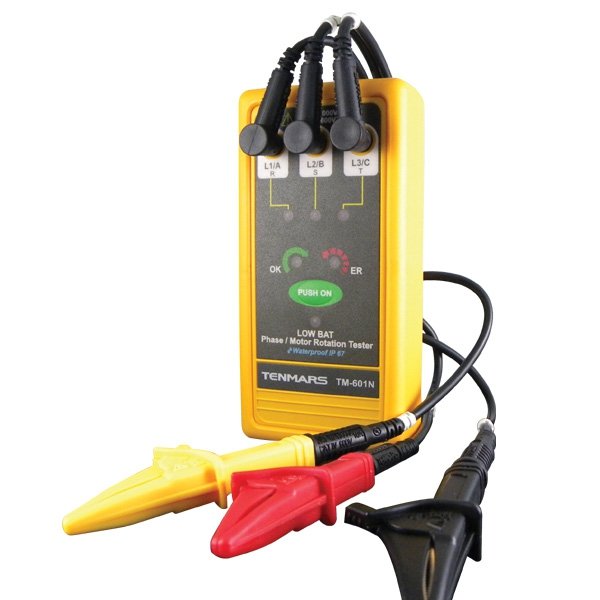

Tenmars TM-601N 3 Phase/ Motor Rotation Tester

Model No.: : TM-601N
Product Description

Waterproof Phase/Motor Rotation Tester
EN 61010-1 CAT III 1000V, CAT IV 600V, EN 61557-7
Display by LED indicators.
Inter-phase voltage: 45V AC up to 600V AC.
Signal Frequency Range: 45Hz to 400Hz.
Test Currents inter-phase less than 3.5mA.
Two UL 500mA/700V fuse protection.
Low battery detection.
Waterproof resist.

  • Phase sequence testing. Three phase motor installation and maintenance.
  • Check motors for rotation direction.
  • Identifies the phase sequence of three phase electrical systems.
  • Indicates normal or reversed phases as well as loss of phase.
    Inter phase Voltage: 45V AC up to 600V AC.
    Signal Frequency Range: 45Hz to 400Hz.
    Inter Phase Test Currents: less than 3.5mA.
    Dimensions: 143mm (L) x 68mm (W) x 35mm (D)
    Weight: 200g approx.
    Included Accessories: User's manual, 9 volt battery, carrying case, three test leads (4ft long) complete with removable alligator clips
