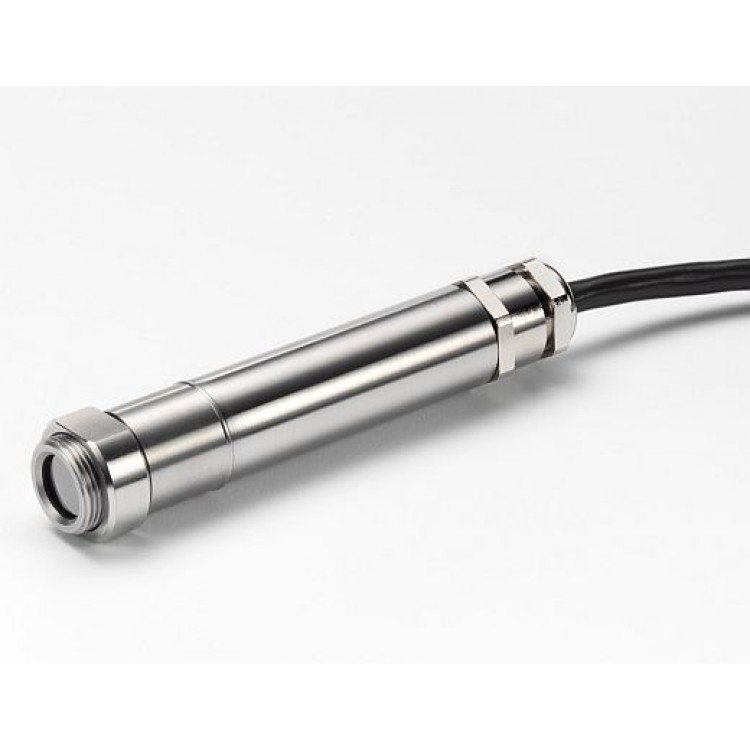

Calex PyroCouple Infra Red Temperature Sensor

Calex Pyro Couple Infra Red Temperature Sensor



The PyroCouple Series is a range of high quality, low cost, compact sensorswhich measure the temperature of inaccessible or moving objects and materials. They measure temperatures from -20°C to 500°C, accurately and consistently, with an outstanding response time of 240 ms. PyroCouple sensors are available as

either two-wire or four-wire units. Two-wire PyroCouple sensors transmit the target temperature as a 4-20 mA output and offer a simple solution for most non-contact temperature measurement applications. Four-wire PyroCouple sensors transmit the target temperature as a 0-50 mV or thermocouple output (type J, K or T) plus the internal sensor temperature as a 4-20 mA output. This second output can be used to ensure that the sensor is being operated within the correct ambient temperature limits and prevent damage caused by overheating or overcooling. It can also be used to give an approximate indication of the air temperature surrounding the sensor.

All PyroCouple sensors are fitted with precision germanium lenses for accurate optics. model PC21 has 2:1 optics making it suitable for most applications where the
sensor can be mounted close to the target. model PC151 is designed for small or distant targets and has an optical resolution of 15:1. model PC301 is designed for very small or distant targets and has an optical resolution of 30:1. model PCCF is designed for targets as small as ø5mm at a distance of 100mm from the sensor.

Features

  • Temperature range: -20°C to 500°C
  • Emissivity setting: fixed at 0.95
  • Two-wire 4-20 mA output or four-wire
  • Voltage/thermocouple output
  • Four-wire unit also provides internal
  • sensor temperature
  • Field of view: 2:1, 15:1, 30:1 or Close focus
  • Fast response with high stability
  • Stainless steel housing, sealed to IP65
  • Quick and easy installation
  • Optional air/water cooled housing, air
  • Purge collar, laser sighting tool and
  • Mounting brackets



Specifications :

  • Accuracy ±1% of reading or ±1ºC whichever is greater
  • Repeatability ± 0.5% of reading or ± 0.5ºC whichever is greater
  • Emissivity Fixed at 0.95
  • Response Time, t90 240 ms (90% response)
  • Spectral Range 8 to 14 μm
  • Supply Voltage 24 V DC (28 V DC max.)
  • Min. Sensor Voltage 6 V DC
  • Max. Loop Impedance 900 Ω ( 4-20 mA output)
  • Output Impedance 56 Ω (voltage/thermocouple output)


Mechanical

  • Construction Stainless Steel
  • Dimensions 18 mm diameter x 103 mm long
  • Thread Mounting m16 x 1 mm pitch
  • Cable Length 1m (longer lengths available to order)
  • Weight with Cable 95 g
  • Environmental Rating IP65
  • Ambient Temperature Range 0ºC to 70ºC
  • Relative Humidity 95% max. non-condensing
