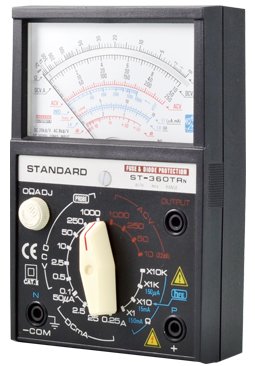

Sew ST-360TRn

Category: Analogue Multimeters

FEATURES

● Easy to read 3-color scale...for mistake proof reading.
● Mirror scale...makes reading pointer easy.
● Fuse protection function.
● Safety fused...on all ranges.
● Diode protected meter...prevents damage due to overload.
● hFE and db measurement.
● With stand...makes reading and measuring easy.

SPECIFICATIONS

DC volts	0-0.1 / 0.5 / 2.5 / 10 / 50 / 250 / 1000V(20kΩ/V)
AC volts	0-10 / 50 / 250 / 1000V
DC mA	50uA / 2.5 / 25 / 250mA
OHMS	2k / 20k / 2M / 20MΩ (20 Mid-Scale)
Accuracy	±3% F.S. DC. ± 4% F.S. AC.
Sensitivity	20kΩ/V DC. 8kΩ/V AC.
dB	-10 to ± 50dB
hFE	0-1000
ICEO	150uA, 15mA, 150mA
LV	3V
Dimensions	102(L) × 148(W) × 46(D)mm
Weight (battery included)	Approx. 300g
Power source	1.5V (AA) × 2 9V(6F22) × 1
Safety standard	IEC 1010-1 CAT II 1000V
