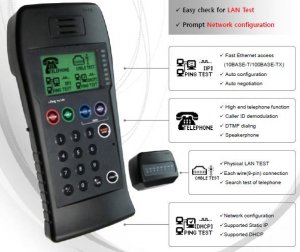

NAN0007-NETWORK INTELLIGEN TESTER (PLUS PING TESTER)

Category: Cable Testers

1.Application :

 -  Network Installation & Maintenance

 - Data communication / Tele-communication

2. Feature :

 1) Ping test

  - Fast Ethernet access (10BASE-T/100BASE-TX)

  - Auto configuration  / Auto negotiation

  - DHCP / Static IP

 2) Telephone network

  - Line check

  - DTMF dialing / Speaker phone

 3) Cable test

  - Physical LAN Test

  - Each wire(8-pin) connection

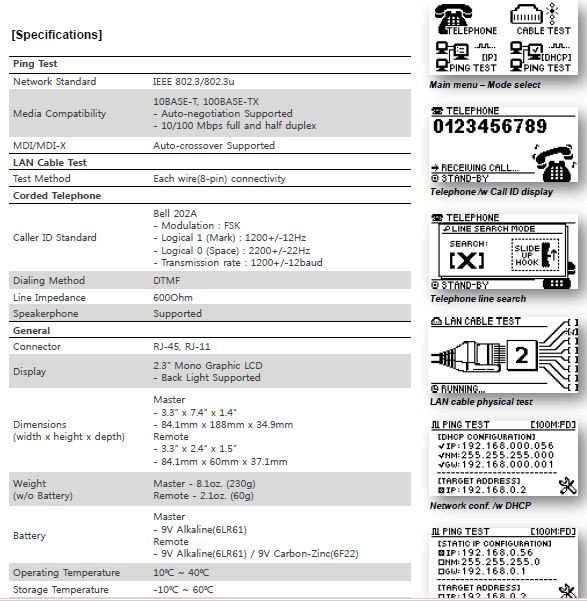

3. Specification

Ping Test

Network Standard

IEEE 802.3/802.3u

Media Compatibility

10BASE-T, 100BASE-TX

- Auto-negotiation Supported

- 10/100 Mbps full and half duplex

MDI/MDI-X

Auto-crossover Supported

LAN Cable Test

Test Method

Each wire(8-pin) connectivity

Corded Telephone

Caller ID Standard

Bell 202A

- Modulation : FSK

- Logical 1 (Mark) : 1200+/-12Hz

- Logical 0 (Space) : 2200+/-22Hz

- Transmission rate : 1200+/-12baud

Dialing Method

DTMF

Line Impedance

600Ohm

Speakerphone

Supported

General

Connector

RJ-45, RJ-11

Display

2.3” Mono Graphic LCD

- Back Light Supported

Dimensions

(width x height x depth)

Master

- 3.3” x 7.4” x 1.4”

- 84.1mm x 188mm x 34.9mm

Remote

- 3.3” x 2.4” x 1.5”

- 84.1mm x 60mm x 37.1mm

Weight

(w/o Battery)

Master - 8.1oz. (230g)

Remote - 2.1oz. (60g)

Battery

Master

- 9V Alkaline(6LR61)

Remote

- 9V Alkaline(6LR61) / 9V Carbon-Zinc(6F22)

Operating Temperature

10℃ƒ ~ 40℃ƒ

Storage Temperature

-10℃ ~ 60℃

Relative Humidity

90%
